Hot wire CNC foam cutting machine | MW – Series! Cutters

MW – Series! Machine

Start Your Mass production

Hot wire CNC foam cutting machine MW – Series! – are recommended for those who planning to start a mass production of architectural and decoration elements. 10 wires cutting identical shapes simultaneously significantly reduce the time required to produce large quantities of identical shapes. The maximum number of cutting wires is 10, but depending on the project the operator may choose to use 1, 2, 3, etc.

CNC-foam-cutting-machine

All Hot wire CNC foam cutting machine MW – Series! come standard with the TitaniumWire. In the MW1300 model the wire is tensioned with springs, in MW2500 models with springs or pneumatically (extra charge) and in the MW3000 models – only pneumatically.

Hot wire CNC foam cutting machine MW-Series!
Hot wire CNC foam cutting machine MW-Series!
Hot wire CNC foam cutting machine MW-Series!
Hot wire CNC foam cutting machine MW-Series!
Hot wire CNC foam cutting machine MW-Series!

AVAILABLE MODELS

The available cutting wires lengths in the MW-Series! are (Z axis):

  • MW 1300 = cutting wires length = 130 cm
  • MW 2500 = cutting wires length = 250 cm
  • MW 3000 = cutting wires length = 300 cm

All hot wire CNC foam cutting machine MW – Series! are available in 3 machine lengths (X axis):

  • Small = Machine Length = 130 cm,
  • Medium = Machine Length = 250 cm
  • Large = Machine Length = 300 cm
CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine

FOR EXAMPLE:

  • MW1300 Small – Machine lengths – 130 cm; Machine Width = Hot Wire Length – 130 cm
  • MW1500 Medium – Machine lengths – 250 cm; Machine Width = Hot Wire Length – 150 cm
  • MW2500 Large – Machine lengths – 300 cm; Machine Width = Hot Wire Length – 250 cm

Here You can Download the MW-Series! CNC foam cutting machine Technical Specification.

NB! To view or download these files you need Adobe Acrobat Reader® which can be downloaded HERE!

Hot wire CNC foam cutting machine MW-Series!

GALLERY

CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine
CNC-foam-cutting-machine

ACCESSORIES

All Hot wire CNC foam cutting machines MW-Series! can be upgraded with the following optional equipment:

COMPUTER NUMERICAL CONTROL

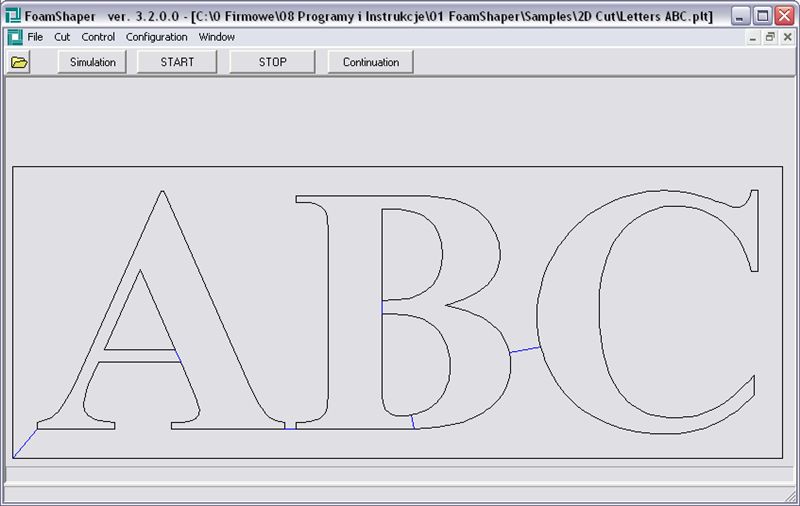

Hot wire CNC foam cutting machine is a computer-controlled device used to cut any shape in expanded and extruded foams. The hot wire moves in the Y and X planes thanks to microstepper motors controlled by the PC. This ensures flawless precision, high processing speed, and consistently excellent quality.

Hot wire CNC foam cutting machine MW-Series!
Hot wire CNC foam cutting machine MW-Series!
Hot wire CNC foam cutting machine MW-Series!

The precise mechanisms and perfect electronic control of motors movement enable the operator to cut any shape, as long as its thickness corresponds with the thickness of the material. There is also the option of designing and cutting a few different outlines of the same project which results in very attractive 3D shapes.
